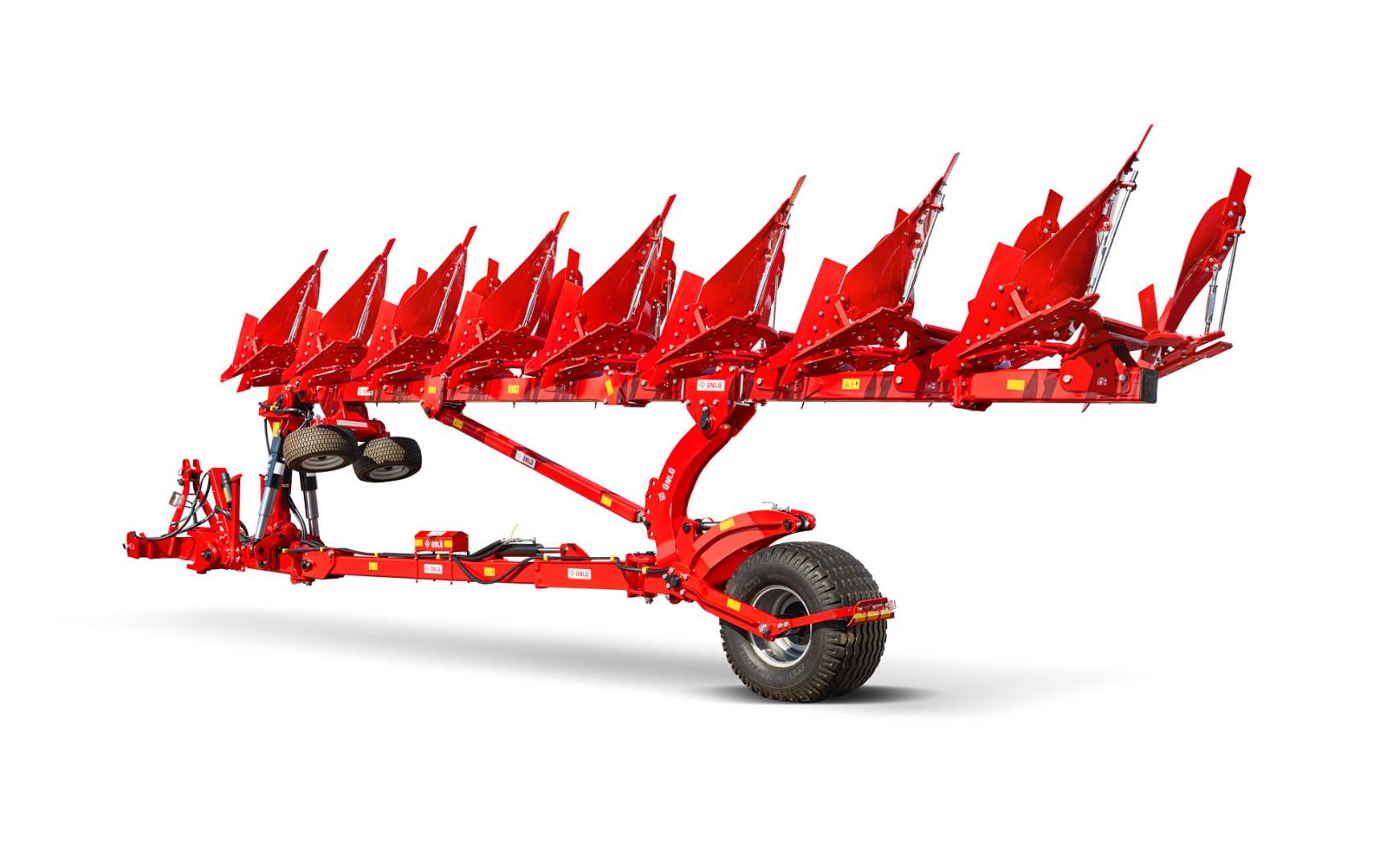

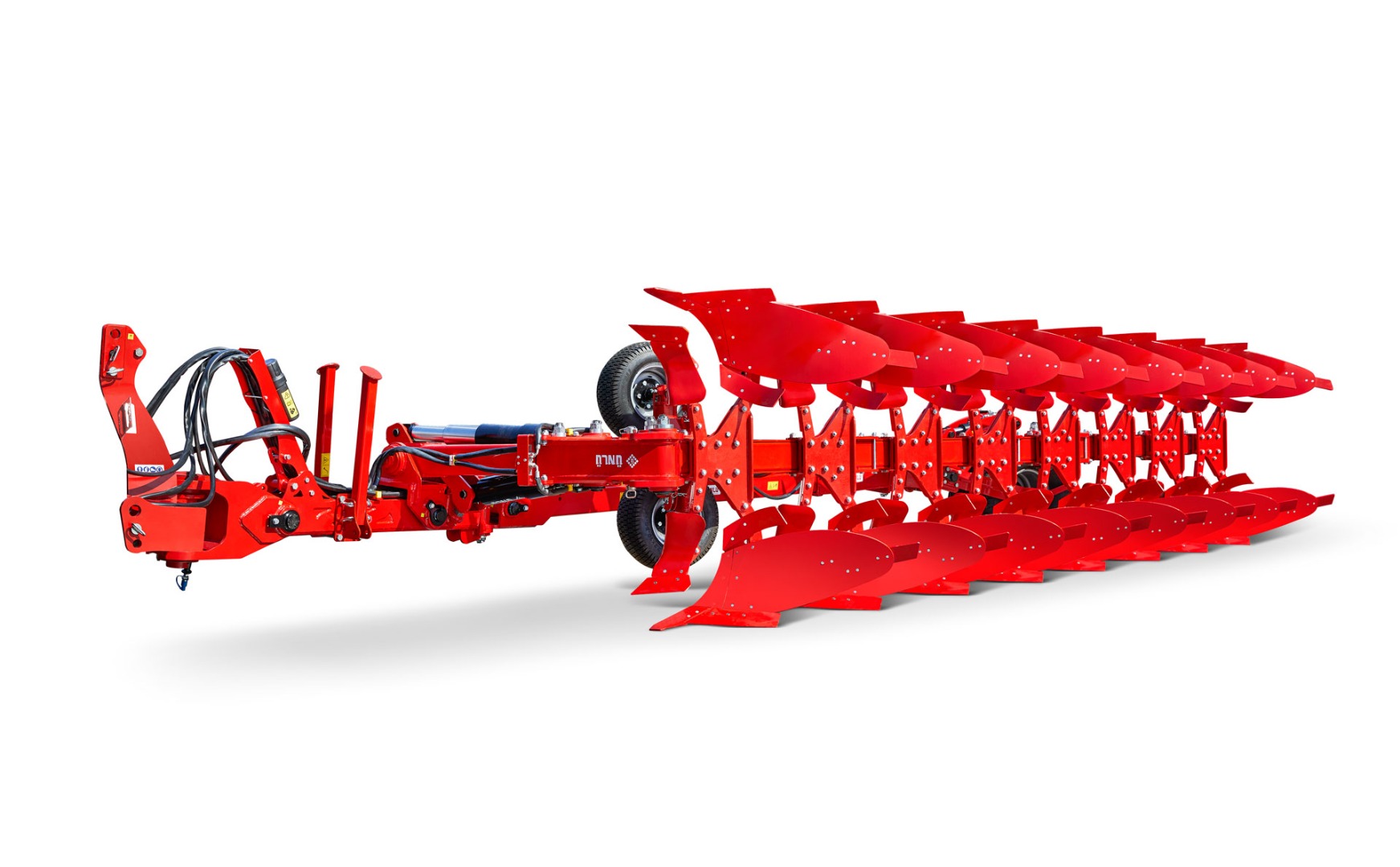

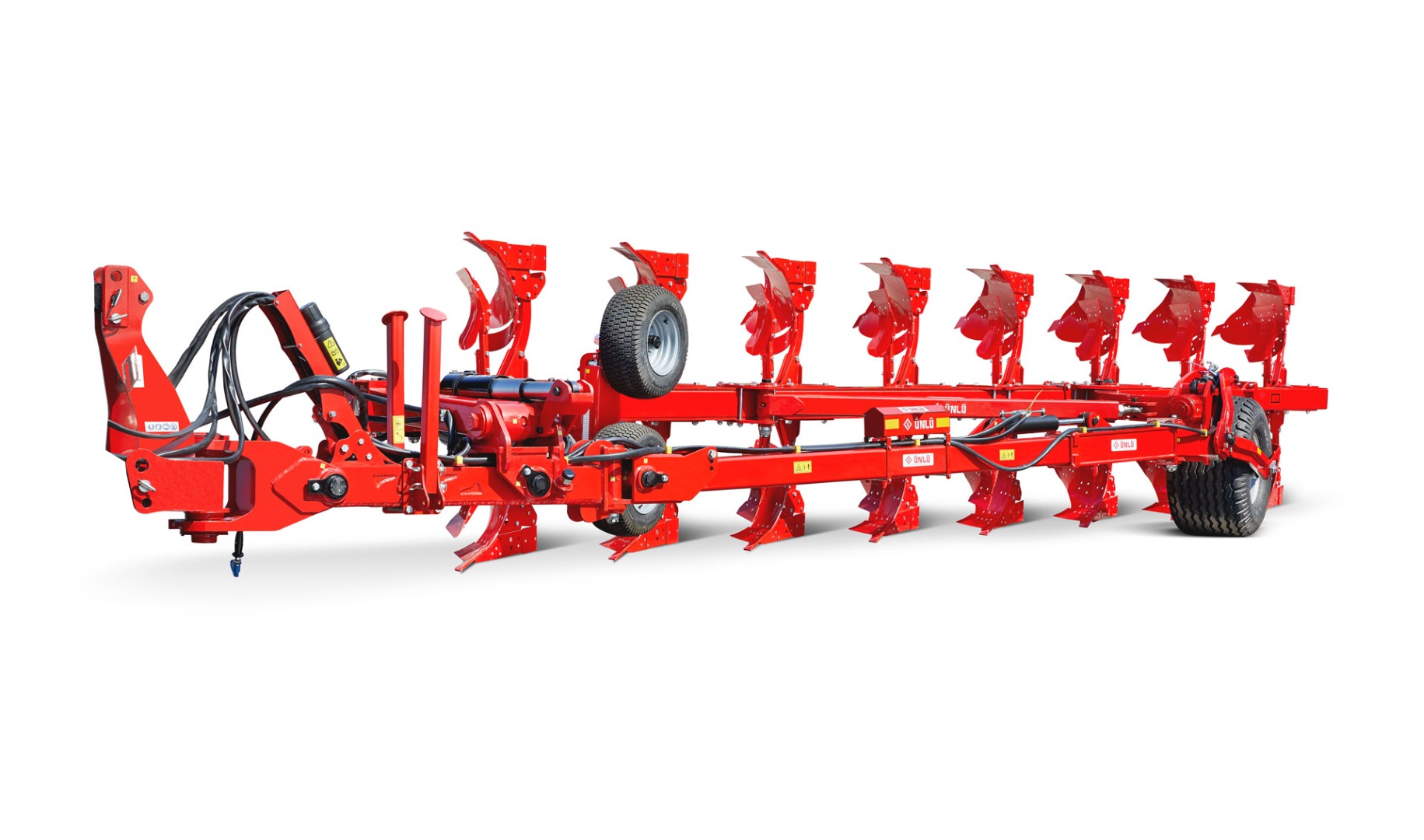

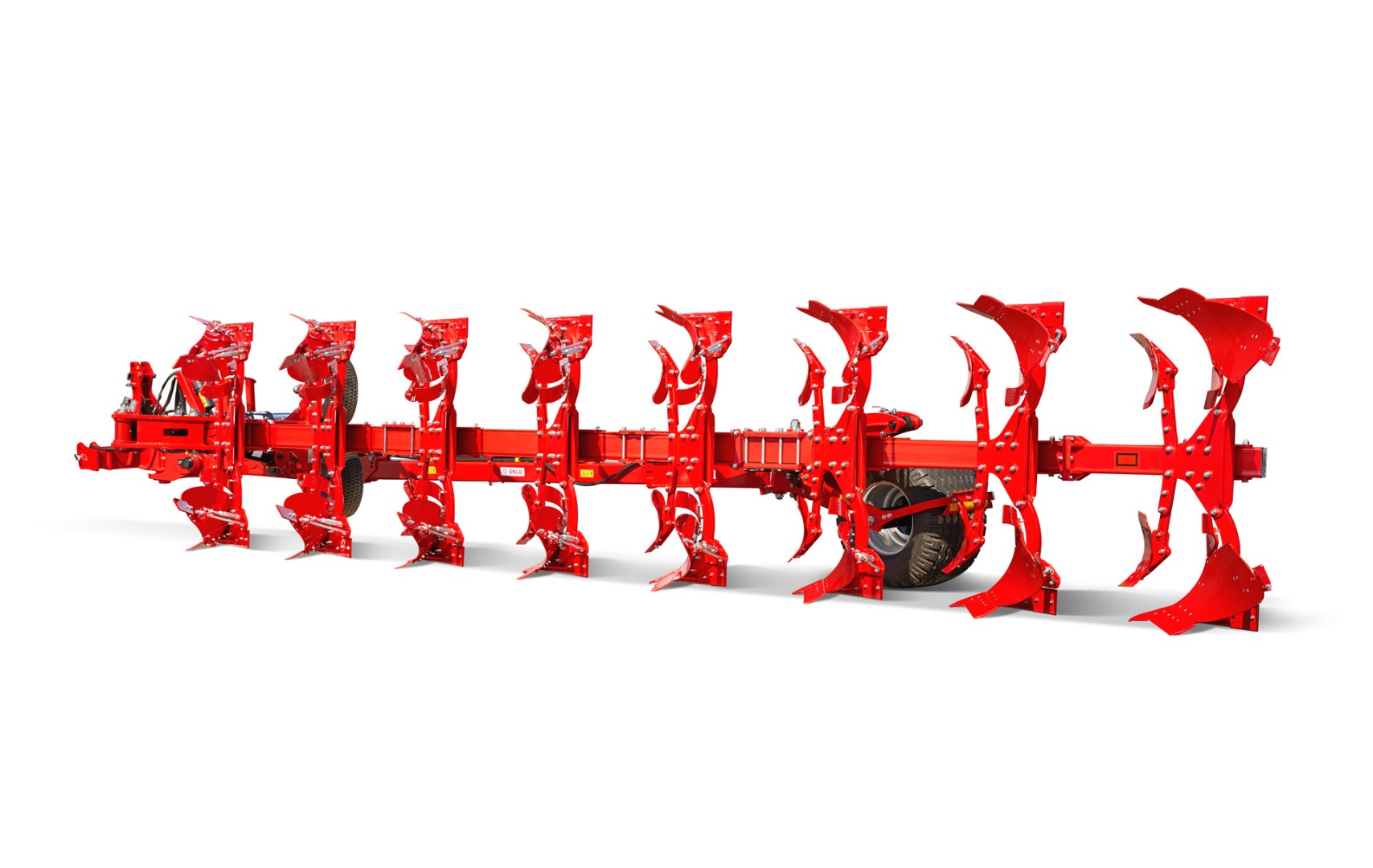

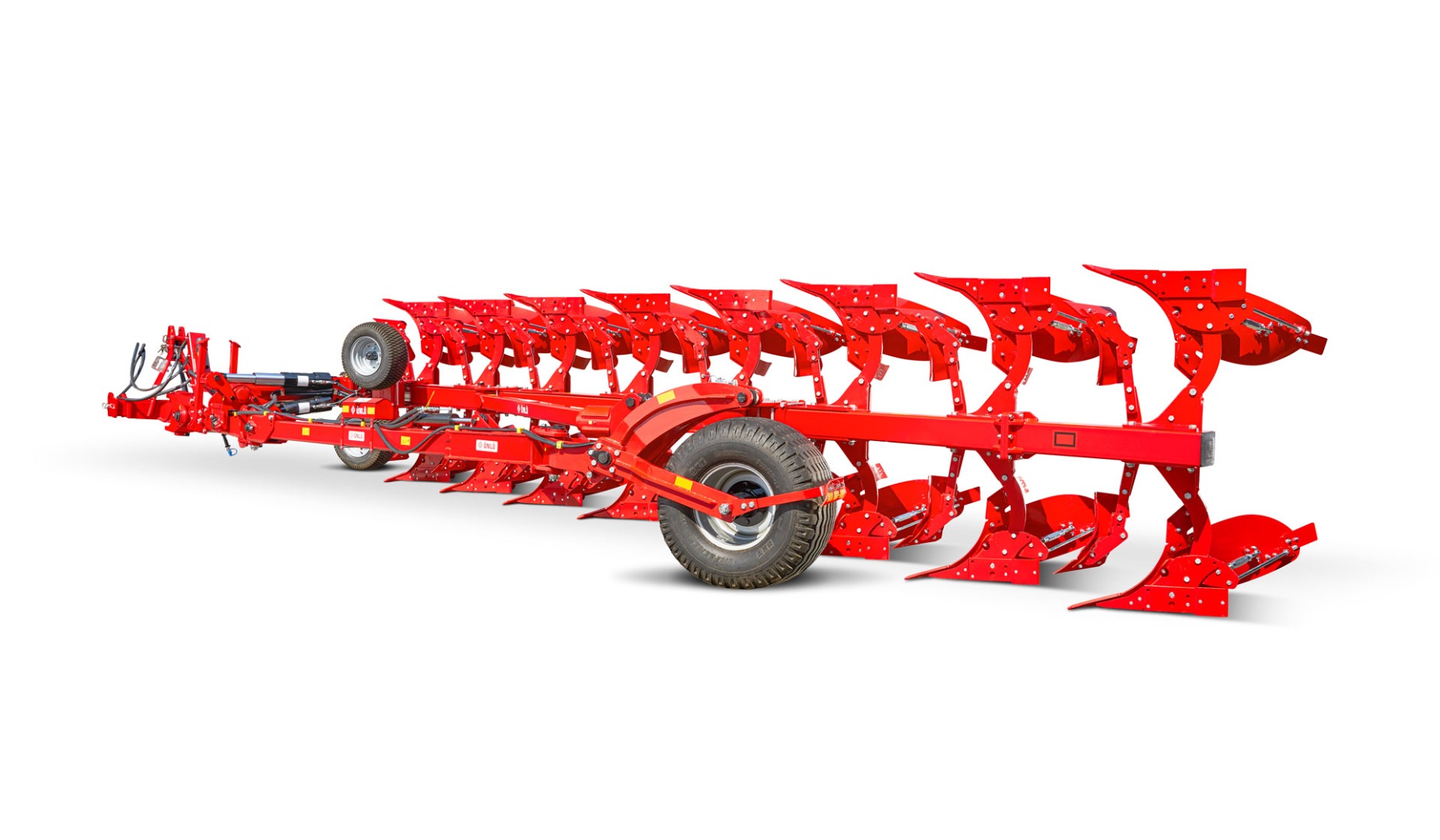

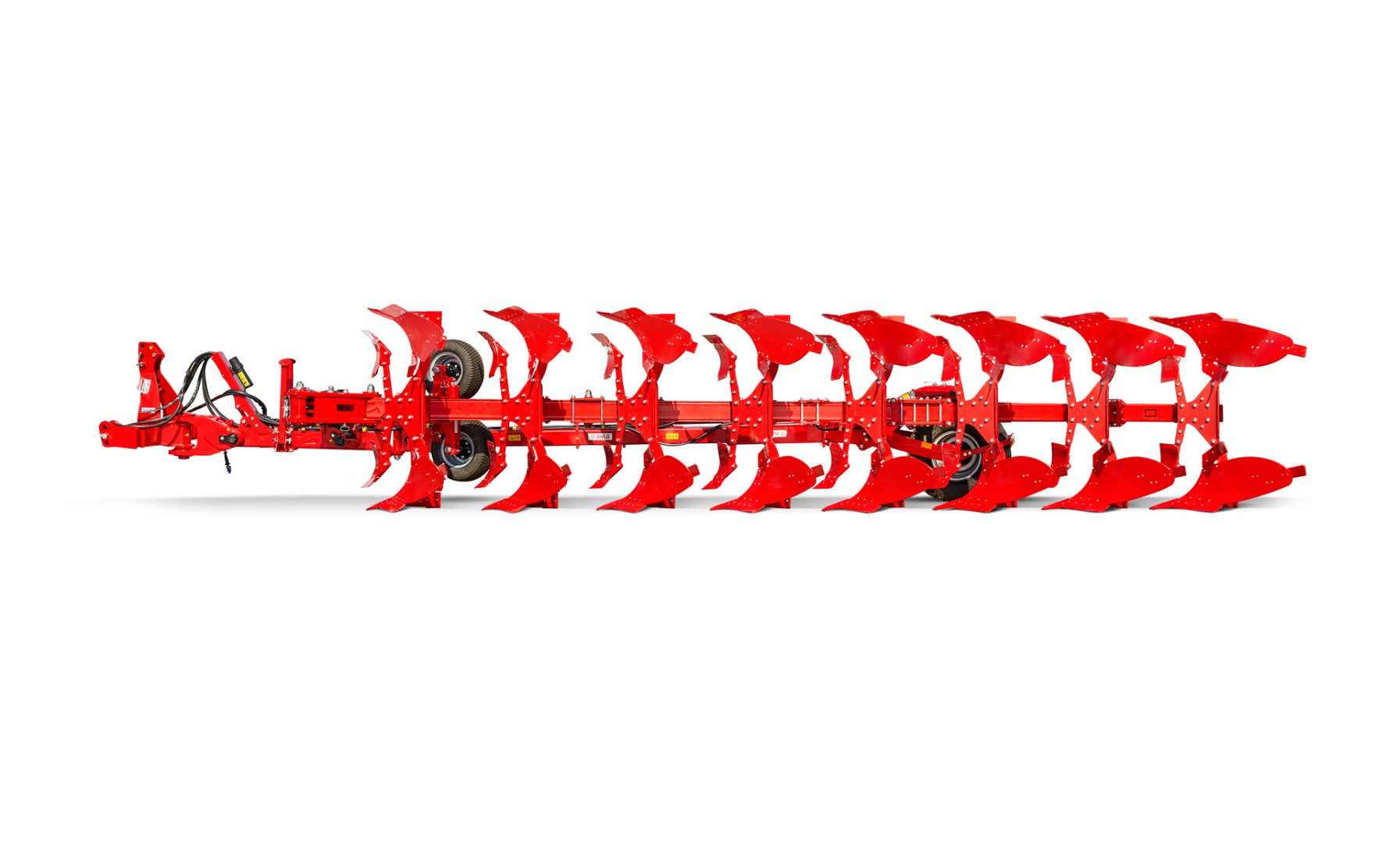

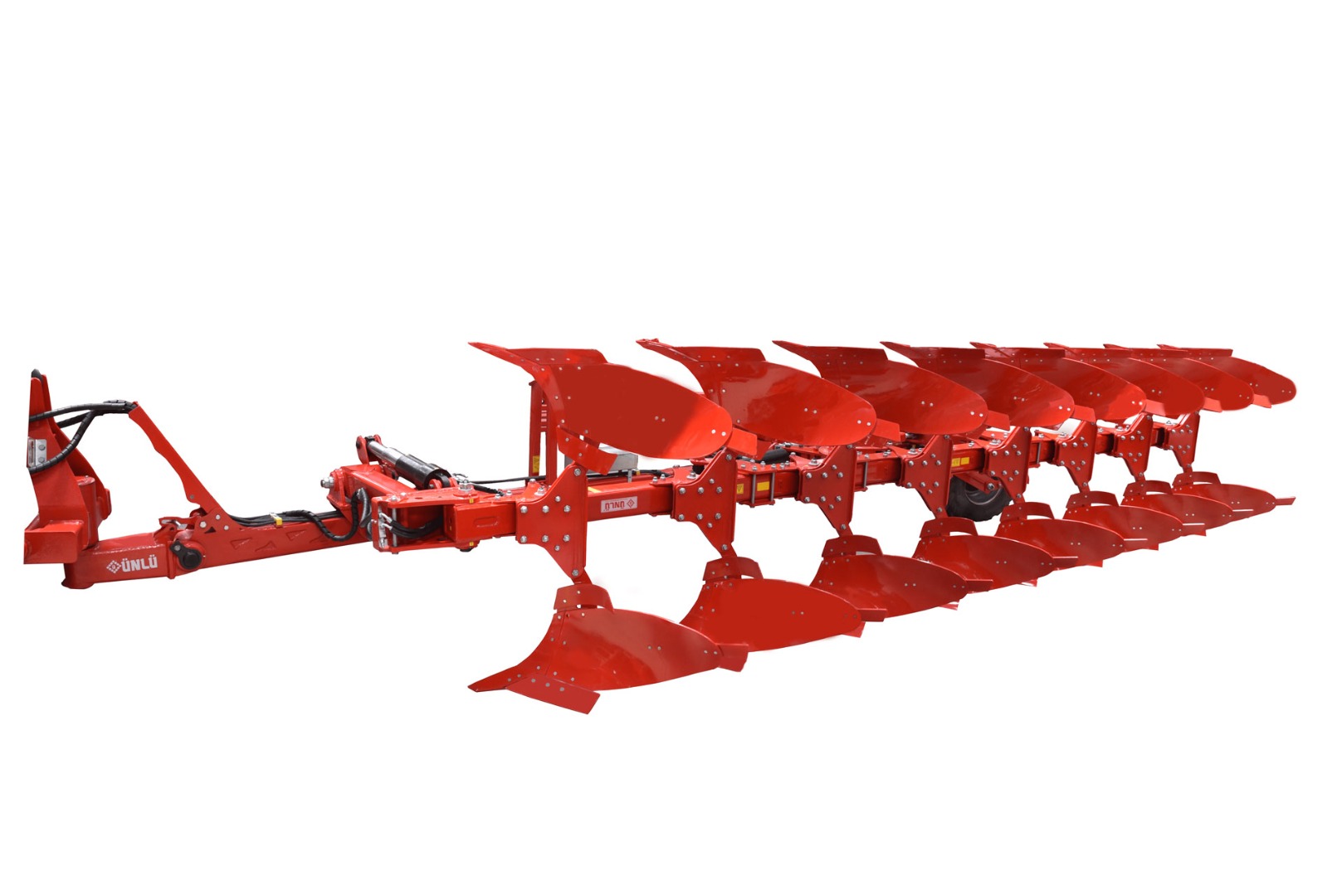

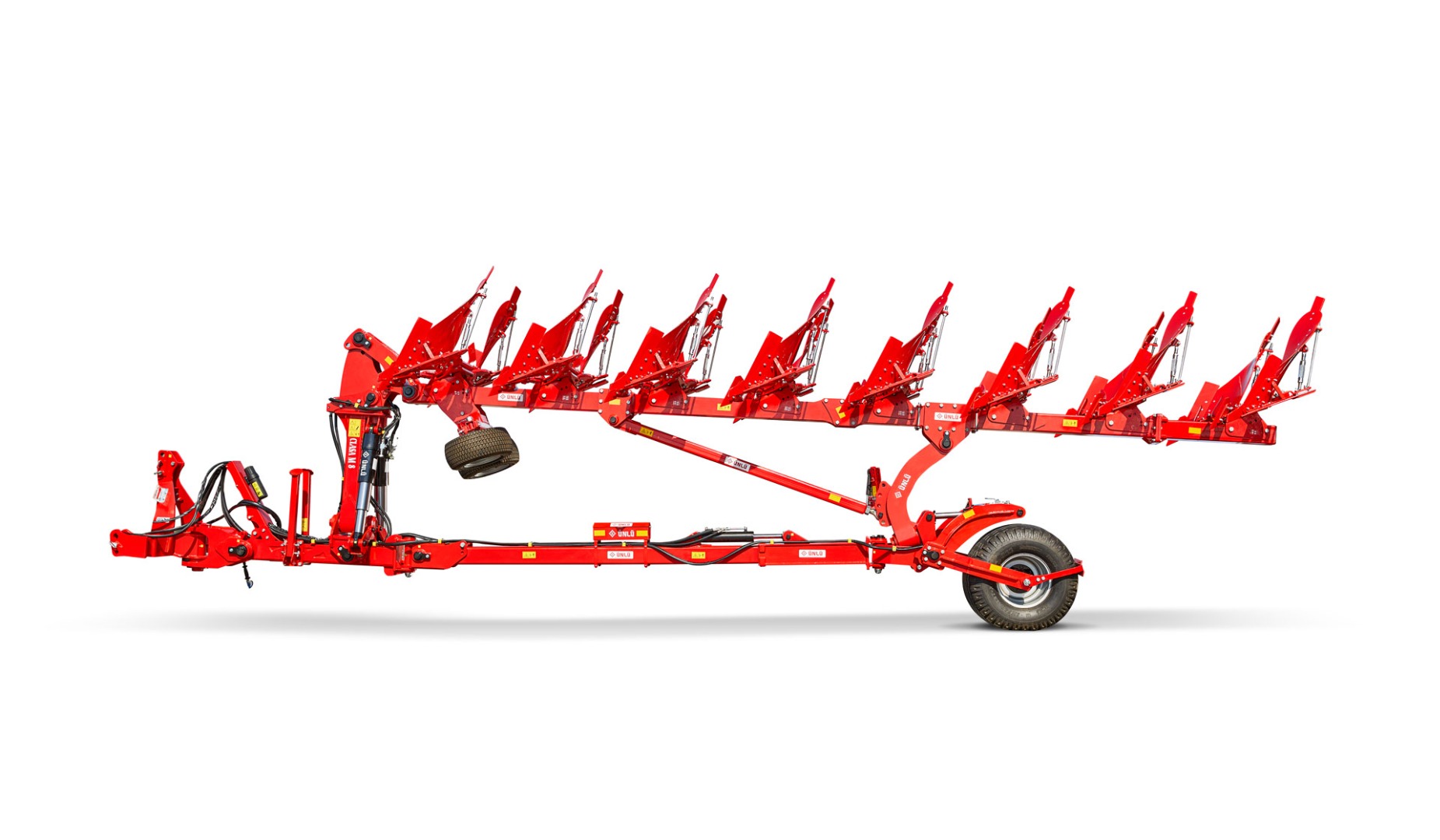

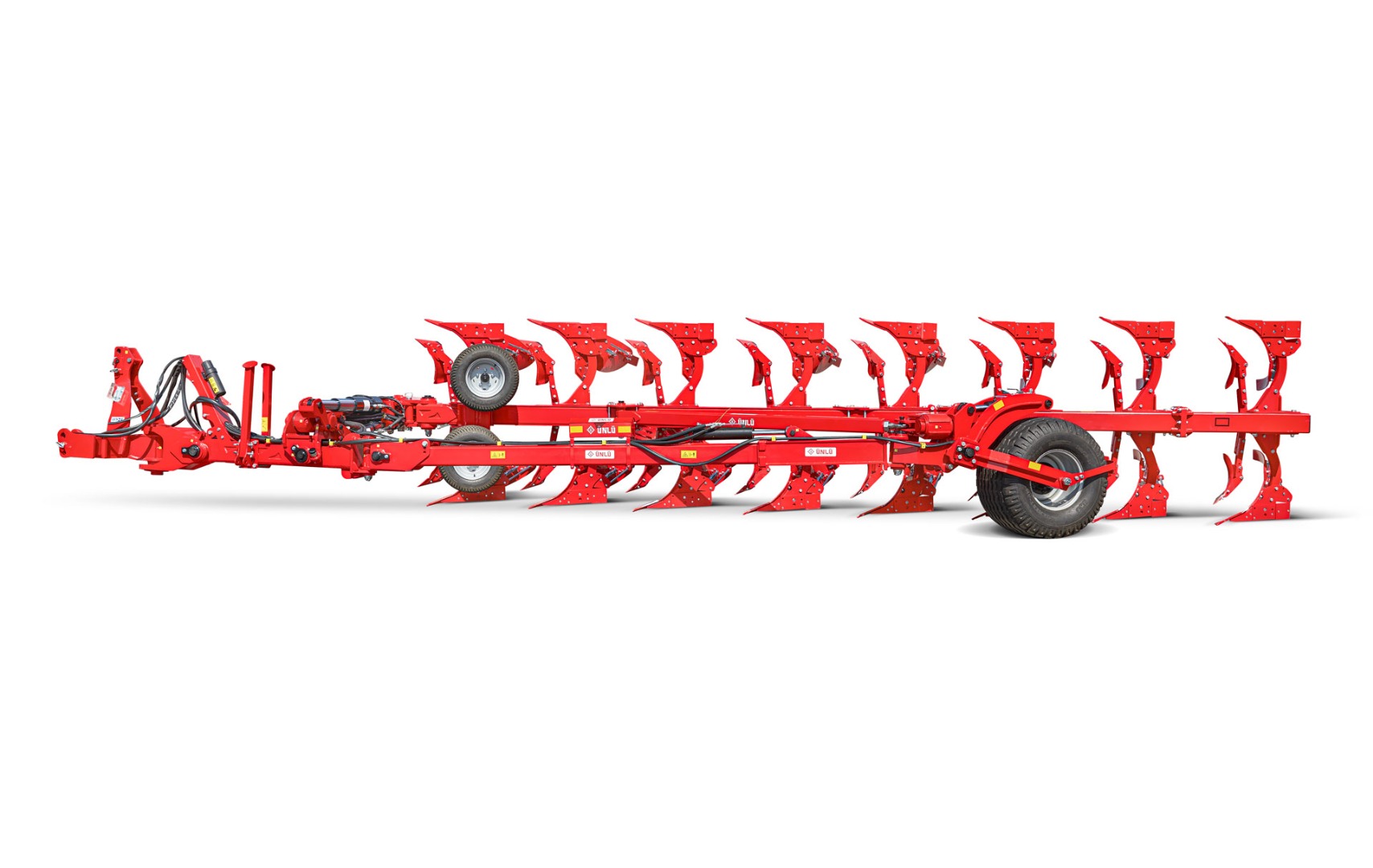

Trailed Reversible Full Automatic Profile Plough
GET OFFER
Manufactured as 6, 7, 8, 9 and 10 furrows with Trailed Reversible Full Automatic Hydraulic Ploughs. Our plough is perfectly compatible with the tractor.
Working depth is adjusted by 3-point linkage in front and by transport wheel at the rear. Both are adjusted hydraulically. Shear-bolt safety protection for stones are as standard. The shear-bolt can be easily replaced.
Ploughs can optionally be equipped with disc coulter and skimmer. Trashboard is a standard.
| TRAILED REVERSIBLE FULL AUTOMATIC HYDRAULIC PLOUGH 160 X 160 | |||||||
| MODEL NO | DESCRIPTION | WORKING WIDTH | WORKING DEPTH | HEIGHT | CLEARANCE | NEEDED POWER | WEIGHT |
| cm | cm | cm | cm | Hp | Kg | ||
| PL-RAT-6/14 | 6 FURROWS 14" | 180-300 | 30-35 | 78-85 | 80-110 | 150-220 | 3600 |
| PL-RAT-6/16 | 6 FURROWS 16" | 180-300 | 35-40 | 80-87 | 80-110 | 180-250 | 3840 |
| PL-RAT-7/14 | 7 FURROWS 14" | 210-350 | 30-35 | 78-85 | 80-110 | 180-250 | 3830 |
| PL-RAT-7/16 | 7 FURROWS 16" | 210-350 | 35-40 | 80-87 | 80-110 | 215-285 | 4070 |
| PL-RAT-8/14 | 8 FURROWS 14" | 240-400 | 35-40 | 80-87 | 80-110 | 220-280 | 4450 |
| PL-RAT-8/16 | 8 FURROWS 16" | 240-400 | 35-40 | 80-87 | 80-110 | 250-320 | 4770 |
| TRAILED REVERSIBLE FULL AUTOMATIC HYDRAULIC PLOUGH 180 X 180 | |||||||
| MODEL NO | DESCRIPTION | WORKING WIDTH | WORKING DEPTH | HEIGHT | CLEARANCE | NEEDED POWER | WEIGHT |
| cm | cm | cm | cm | Hp | Kg | ||
| PL-RAT-7/16 | 7 FURROWS 16" | 210-350 | 35-40 | 80-87 | 80-110 | 215-285 | 4300 |
| PL-RAT-8/16 | 8 FURROWS 16" | 240-400 | 35-40 | 80-87 | 80-110 | 250-320 | 4900 |
| PL-RAT-9/16 | 9 FURROWS 16" | 270-450 | 35-40 | 80-87 | 80-110 | 295-345 | 5200 |
